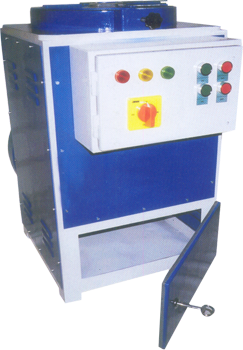

Spectrographic Polisher

	Spectrographic Polisher
Application :
The MOIGO3 is a Specialized Circular Disk Grinder devised with specialized. application of preparing the surface of the samples required to be tested on the Optical Emission Spectrometer for the generation of the chemical composition of the material of specific grade. The polishing machine is equipment with ultra high speed motor which makes the sample polishing / surface finishing of the sample ready in few seconds.

Technical Specification :
Sr. Description  Specification
1 Disk Three phase motor 440 volts 2 HP
2 Speed 3000 RPM
3 Disk Diameter 350 mm
4 Instrument Dimensions 460 mm x 800 mm (LXB)
5 Operating Height 900 mm
6 Weight of the machine 230 kgs
7 Input Power requirement 400 V three phase supply
8 RPM of the Disk 3000 RPM
9 Polishing Disc Aloxite Paper
Size : 350 mm Diameter
40 mm Bore
10 Polishing Disc coarseness For the steel sample     : 60 Grit
For Cast Iron Samples   : 40 Grits
For Low Alloys             : 80 Grits
11 Disc Motor 2 HP 415 V/50/3/AC supply
12 Suction  / Blower Motor 1 HP 415 /50 /3 AC Supply


Feature of the Spectro Polisher
Compact in Size
MOI Real Horse Shoe Brake
MOI No need of the Foundation
MOI Stand - alone On Shock Mounts
MOI Ease of paper Replacement
MOI state of Art Design as per therecommedations of the IS and ASTM
MOI Lockable Reck for the paper storage
MOI Front panel with individual starter and the Isolation Switch with 3 phase indicators.

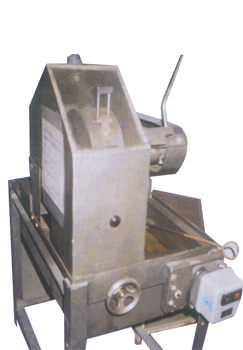

Spectrographic Cutter

	Spectrographic Polisher
Application :
The MOICT04 is a Specialized Circular Disk Cutting devised with specialized. application of cutting the samples Quickly and Cleanly, The Sample may be from rods or tubes or other irregular shapes and small pieces of rocks and minerals by using appropriate diamond impregnated cutting wheels. A chop stroke type midget table model suitable for using diamond wheels up to 10" Diameter round or square stocks. the basic arrangement is spindle Arm sea-saw tupe. The protection cover of the cutting chamber is provided.

Technical Specification :
Sr. Description  Specification
1 Electric motor 440 volts  AC/ 2 HP TEFC
2 Speed 2800 RPM
3 Disk wheel  Diameter Up to 10 Inch diameter
4 Instrument Dimensions 1000 mm x 1000 mm (LXB)
5 Operating Height 1250 mm
6 Weight of the machine 200 kgs
7 Input Power requirement 440 V three phase supply
8 RPM of the Spindle 2800 RPM
9 Cooling Coolant delivered by a small pump from tank.
10 Disc wheel  to be used Bore 1"
Diamond Grit: 100
Abrasive Diamond impregnated 10" dia
11 Job clamping  Plat form positing adjustable to change job location.  Vice provided for holding the jobs.
12 Suction  / Blower Motor 1 HP 415 /50 /3 AC Supply


Feature of the Spectro Polisher
Compact in Size
MOI No need of the Foundation
MOI It has cutting capacity : samples of 2.5" to 2.75" dia round or square stokes.
MOI Ease of paper replacement
MOI State of Art Design as per the recommendations of the IS and ASTM.
MOI Can be used for different cutting application by different cutting abrasive discs.
MOI Front panel with individual starter and the Isolation Switch with 3 phase indicators.


Spectrometer Sampling Grinders And Cutters
Model : MOIG03, Model : MOICT04
